Error codes

0x00000000 Description

No error
Remedy

For information only. No remedy necessary.
Product categories

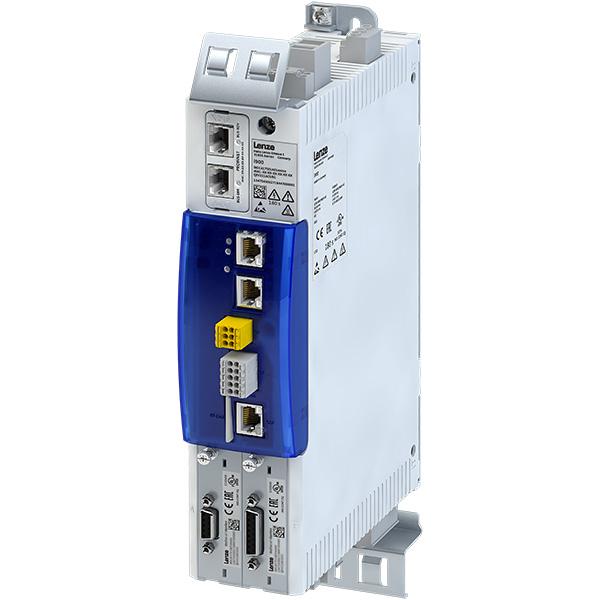

i950
0x0011 Description

Short circuit of motor cable
Remedy
- Search for cause of short circuit.
- Check motor cable.
  Use motor cable which is shorter
  or of lower capacitance.
Product categories
i550
0x0012 Description

Motor cable earth fault
Remedy
- Search for cause of short circuit.
- Check motor cable.
Product categories
i550
0x0015 Description

I x t overload
Remedy

Check drive dimensioning.
Product categories
i550
0x0016 Description

I²xt overload
Remedy

Check drive dimensioning.
Product categories
i550
0x0018 Description

I²xt overload advance warning
Remedy

Check drive dimensioning.
Product categories
i550
0x1020 Description

Overvoltage in DC bus
Remedy
- Use braking unit or regenerative module.
- Check dimensioning of the brake resistance.
Product categories
i550
0x1030 Description

Undervoltage in the DC bus
Remedy
- Check mains voltage
- Check supply cable
Product categories
i550
0x20092351 Description

Motor utilization too high (i²xt)
Remedy

Check drive sizing. Check the setting in the warning threshold or error threshold.
Product categories
i950
0x20092380 Description

Trouble - utilization of the power section (ixt) too high
Remedy

Check drive sizing.
Product categories
i950
0x20092381 Description

Warning - Utilization of the power section (ixt) too high
Remedy

Check drive sizing.
Product categories
i950
0x20092384 Description

Ultimate motor current reached
Remedy
- Reduce the maximum current of the inverter. 0x6073
- Optimize the current controller. 0x2942
Product categories
i950

Parameters

0x1000 Parameter
Device type Default setting
- (Read only) Product category
i950, i550
0x1001 Parameter
Error register Default setting
- (Read only) Product category
i950, i550
0x1003:001 Parameter
ERR_History_ADOM: ErrorEntry_DOM 1 Default setting
- (Read only) Product category
i550
0x1003:002 Parameter
ERR_History_ADOM: ErrorEntry_DOM 2 Default setting
- (Read only) Product category
i550
0x1003:003 Parameter
ERR_History_ADOM: ErrorEntry_DOM 3 Default setting
- (Read only) Product category
i550
0x1003:004 Parameter
ERR_History_ADOM: ErrorEntry_DOM 4 Default setting
- (Read only) Product category
i550
0x1003:005 Parameter
ERR_History_ADOM: ErrorEntry_DOM 5 Default setting
- (Read only) Product category
i550
0x1003:006 Parameter
ERR_History_ADOM: ErrorEntry_DOM 6 Default setting
- (Read only) Product category
i550
0x1003:007 Parameter
ERR_History_ADOM: ErrorEntry_DOM 7 Default setting
- (Read only) Product category
i550
0x1003:008 Parameter
ERR_History_ADOM: ErrorEntry_DOM 8 Default setting
- (Read only) Product category
i550
0x1003:009 Parameter
ERR_History_ADOM: ErrorEntry_DOM 9 Default setting
- (Read only) Product category
i550
0x1003:010 Parameter
ERR_History_ADOM: ErrorEntry_DOM 10 Default setting
- (Read only) Product category
i550
